PERFORMANCE |
| Processor | Intel® Core i5-12400, 4C (4P + 0E) / 8T, P-core 3.3 / 4.3GHz, 12MB |
| Graphics | Integrated Intel® UHD Graphics 730 |
| Chipset | Intel® B760 Chipset |
| Memory | 1x 8GB UDIMM DDR4-3200 |
| Memory Slots | Two DDR4 UDIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR4-3200 |
| Storage | 1TB HDD 7200rpm 3.5" |
| Storage Support | Up to two drives, 1x 3.5" HDD + 1x M.2 SSD ? 3.5" HDD up to 2TB ? M.2 SSD up to 1TB |
| Card Reader | 3-in-1 Card Reader |
| Optical | DVD±RW |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC222-CG codec |
| Speakers | 2Wx1 |
| Power Supply | 180W 85% |
DESIGN |
| Keyboard | USB Calliope Keyboard, Black, English (UK) |
| Mouse | USB Calliope Mouse, Black |
| Optional Bay | M.2 Bracket |
| Expansion Slots | One PCIe® 4.0 x16, full-height, half-lengthTwo PCIe® 3.0 x1, full-height, half-lengthM.2 Bracket. For installing M.2 devices, M.2 bracket kit is needed. The kit is optional, or comes with pre-configured M.2 SSD or M.2 Wifi modelsTwo M.2 slots (one for WLAN, one for SSD) |
| Case Color | Black |
| System Fan | None |
| Pen | Pen Not Supported |
| Form Factor | Tower (13.6L) |
| Dimensions (WxDxH) | 145 x 294 x 340 mm (5.71 x 11.57 x 13.39 inches) |
| Weight | Around 5.5 kg (12.1 lbs) |
CONNECTIVITY |
| Ethernet | Intel® I219-V, 1x RJ45 |
| WLAN + Bluetooth | None |
| WWAN | Non-WWAN |
| Front Ports | 1x USB-C® 3.2 Gen 1 (support data transfer and 5V@3A charging)2x USB 3.2 Gen 12x USB 3.2 Gen 21x headphone / microphone combo jack (3.5mm)1x microphone (3.5mm) |
| Optional Front Ports (configured) | 1x card reader |

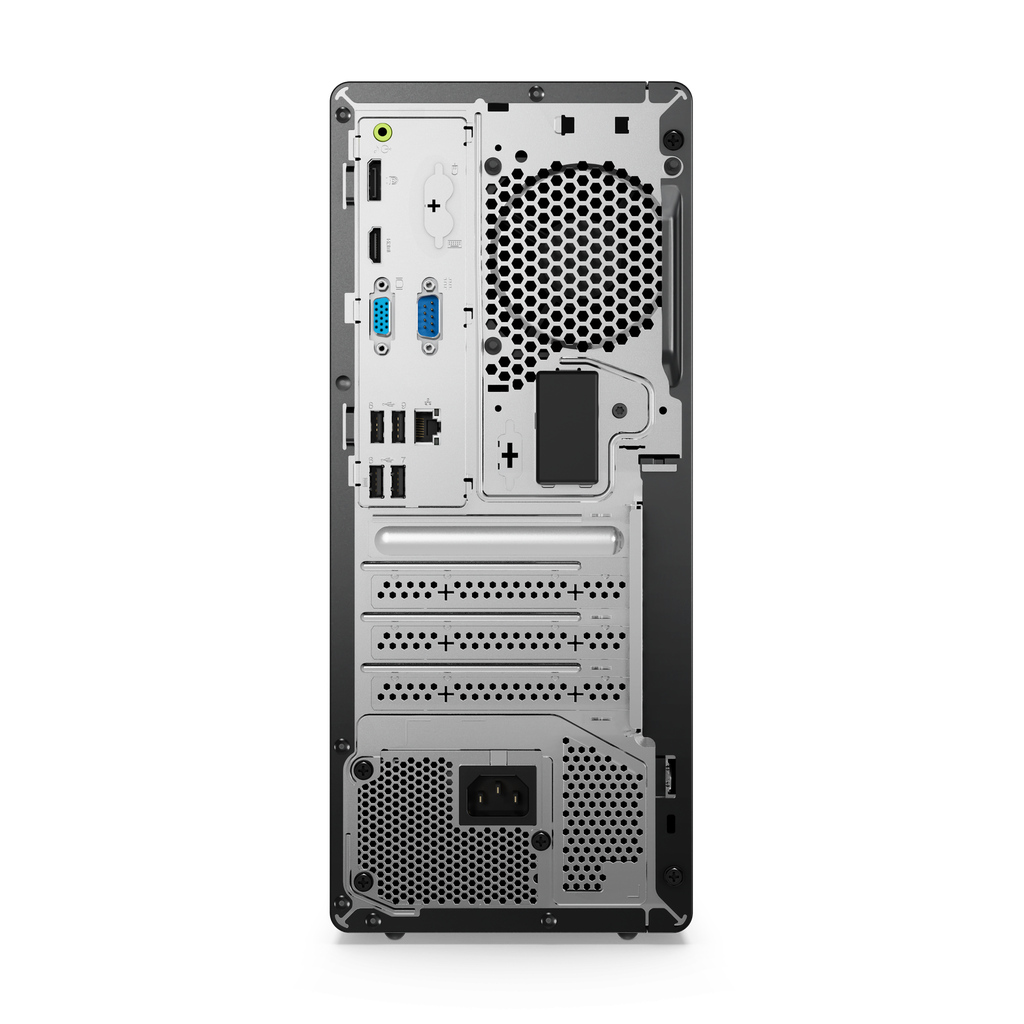

| Rear Ports | 4x USB 2.0 (one supports Smart Power On)1x HDMI® 1.4b1x DisplayPort? 1.41x VGA1x Ethernet (RJ-45)1x headphone (3.5mm)1x serial (9-pin) |
| Optional Rear Ports (configured) | Parallel |
| Monitor Cable | None |
SECURITY & PRIVACY |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington® Security Slot?, 3 x 7 mmPadlock Loop |
| Smart Cable Clip | None |
| Chassis Intrusion Switch | None |
| MANAGEABILITY |
| System Management | Non-vPro® |
SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | None |
CERTIFICATIONS |
| Green Certifications | EPEAT? Gold RegisteredREACHTCO CertifiedWEEE |
SOFTWARE |
| Operating System | None |
| Bundled Software | None |
ACCESSORIES |
| Bundled Accessories | None |
